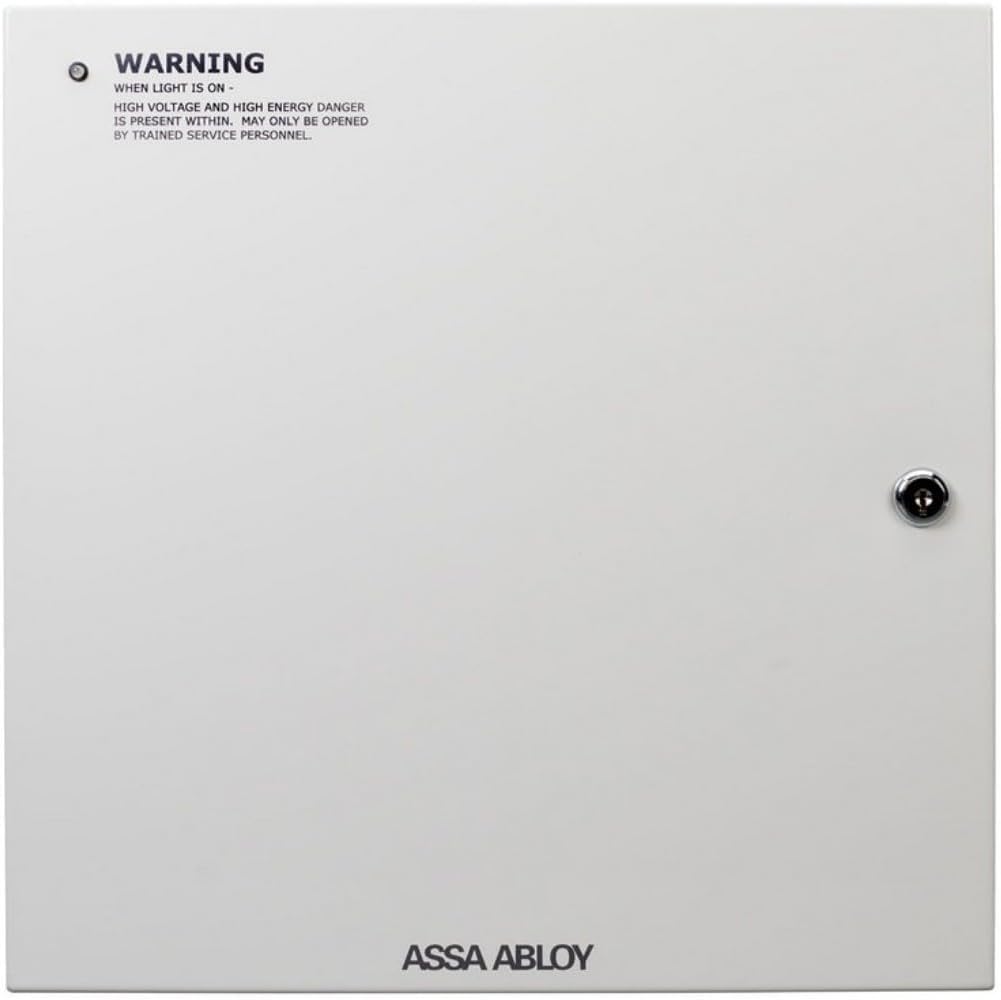

Securitron AQD1 Dual Voltage Switching Power Supply with Enclosure, 1A Output, Thermal Shutdown Protection with Auto Restart, Circuit Breaker Protects, 12 VDC or 24 VDC Selectable Input

Securitron AQD1 Dual Voltage Switching Power Supply with Enclosure, 1A Output, Thermal Shutdown Protection with Auto Restart, Circuit Breaker Protects, 12 VDC or 24 VDC Selectable Input The Securitron AQD1 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs. KEY FEATURES - All combinations of AQ power supplies and distribution boards are UL listed - Integrated battery charging circuit prevents overvoltage on locking devices - Dual voltage 12 or 24 VDC field selectable continuous output - Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics - Circuit breaker protects against overcurrent and reverse battery faults - Thermal shutdown protection with auto restart - Tolerates brownout or overvoltage input ± 15% of nominal voltage - Low battery cutoff at 9V SPECIFICATIONS - Operating Temperature: -4° to 122°F [-20° to 50°C] - Dimensions: 14" x 14" x 4-3/4" [355.6 x 355.6 x 120.65mm] - Shipping Weight: 12.7 lbs [5.76kg]

• All combinations of AQ power supplies and distribution boards are UL listed
• Integrated battery charging circuit prevents overvoltage on locking devices
• Dual voltage 12 or 24 VDC field selectable continuous output
• Circuit breaker protects against overcurrent and reverse battery faults
• Tolerates brownout or overvoltage input ± 15% of nominal voltage
